Light frame for food delivery boxes
Shaoxing Longfan started in 2021. We make fiberglass products. Delivery riders carry heavy food boxes. The boxes need to be light. But they also need to be strong. So we use hollow fiberglass tubes. The outer diameter is 8.0 mm. The inner diameter is 6.0 mm. The wall thickness is 1.0 mm. The tube is 40% lighter than solid rod. A supplier for a major delivery platform bought our 8.0 Hollow Delivery Box Support Frame. They calculated that each box is 200 grams lighter. Riders can do more deliveries. They now buy 100,000 frames per year. We have 14 patents. Our annual production is 3000 tons.
Hollow tubes and connector joints

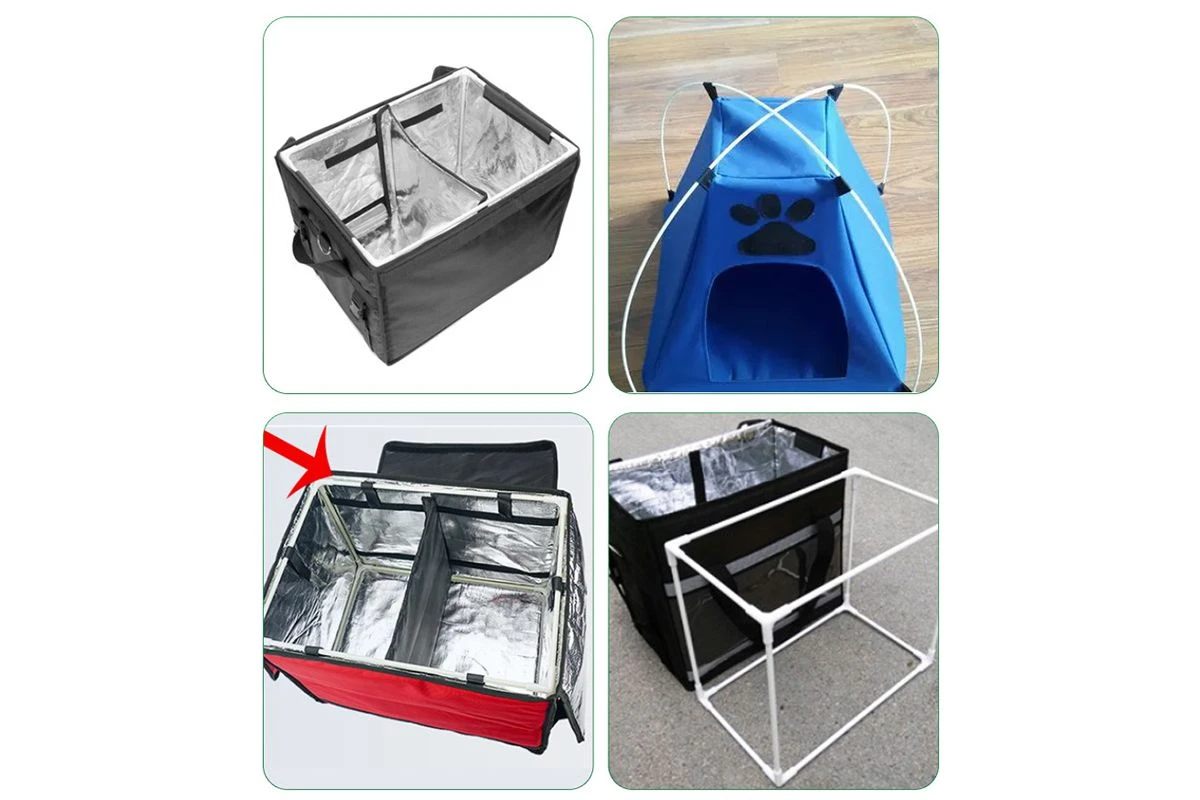

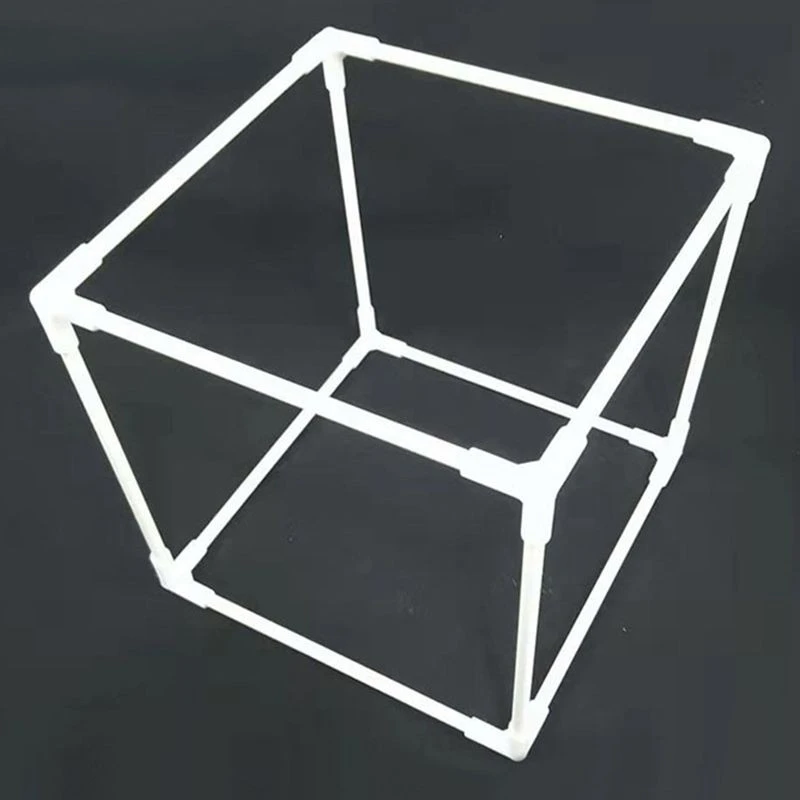

We use hollow fiberglass tubes. Outer diameter is 8.0 mm. Inner diameter is 6.0 mm. Wall thickness is 1.0 mm. The tubes are straight. Some tubes are bent into curves. The tubes connect with plastic connectors. The connectors are T-joints, L-joints, and cross joints. The connectors are made of PA66 with 30% fiberglass. They are very strong. The frame forms a box shape. The size is custom. A common size is 40 x 30 x 30 cm. The whole frame weighs less than 400 grams.
Test data from our lab
We tested the frame in our lab. The table below shows the results.
|
Parameter |
Value / Standard |
|
Tensile Strength |
≥ 500 MPa |
|
Modulus of Elasticity |
≥ 28 GPa |
|
Load Test (top) |
30 kg evenly distributed |
|
Deflection |
≤ 10 mm |
|
Result |
No break |
|
Drop Test |
1 meter onto concrete |
|
Result |
No damage |
|
Connector Pull-out Force |
≥ 150 N |
The frame is very strong. It holds 30 kg of food. The connectors are tight. They will not come apart. The frame is also very light. Riders can carry the box easily. The hollow tubes save weight. The frame does not rust. It works in rain or snow. The 8.0 Hollow Delivery Box Support Frame is very durable.
Easy to assemble and repair
The frame comes as a kit. You push the tubes into the connectors. No glue is needed. The friction fit holds them. You can assemble a frame in 2 minutes. If a tube gets damaged, you replace just that tube. You do not need to buy a whole new frame. The connectors are reusable. The frame can also be taken apart for storage. This is good for riders who have multiple boxes.
Why customers buy from us
We support custom orders. Do you need a different size? Yes, any size from 20 to 60 cm. Do you need a different tube length? Yes, any length. Do you need a different connector color? Yes, black or white. FAQ: Can I put insulation around the frame? Yes, foam or aluminum foil works. FAQ: Is it safe for hot food? The fiberglass does not transfer heat. FAQ: How much does a 30x30x30 cm frame weigh? About 300 grams. The 8.0 Hollow Delivery Box Support Frame is perfect for delivery riders. Shaoxing Longfan has ISO 9001. We make 3000 tons of fiberglass products each year.
