Light rods for suitcase dividers
Shaoxing Longfan started in 2021. We make fiberglass products. Hard shell suitcases have a fabric divider. The divider needs rods to hold it up. Metal rods set off airport metal detectors. They are also heavy. So we use thin fiberglass tubes. The tubes are light. They do not set off detectors. A factory that makes luggage for a major brand used our Luggage Support Rods. They said the no-metal feature is very helpful for customs checks. We have 14 patents. Our annual production is 3000 tons.

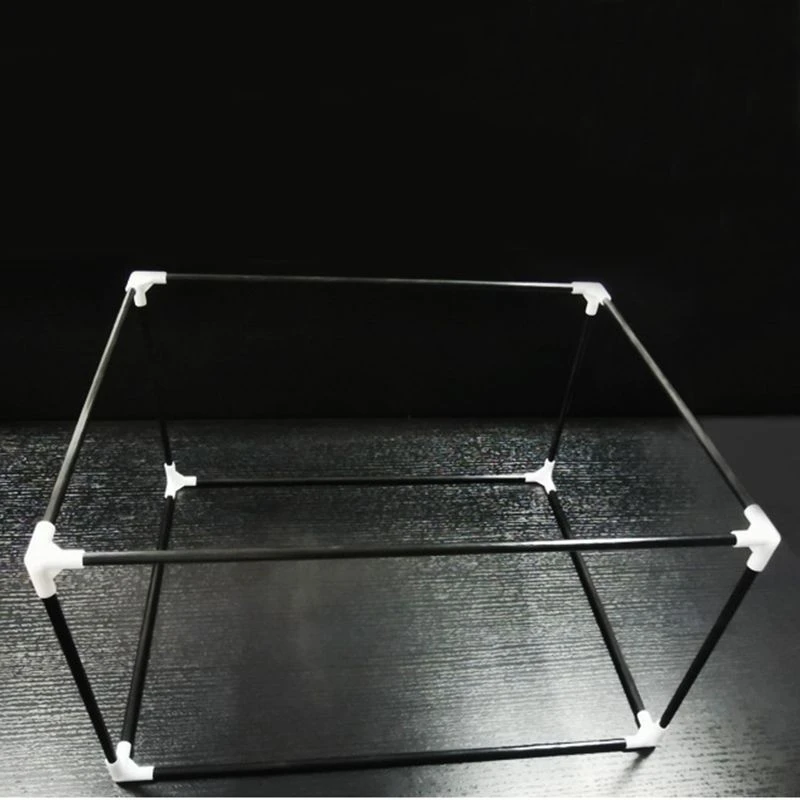

Thin tubes with silicone ends
We use fiberglass tubes. The outer diameter is 4 to 5 mm. The wall thickness is 0.8 mm. The length is 300 to 600 mm. The length depends on the suitcase width. The surface is smooth. The ends have silicone anti-slip caps. The caps fit into slots on the suitcase walls. The rods hold the divider flat. They keep clothes from shifting. The rods are very light. Each rod weighs less than 10 grams.
Test data from our lab
We tested the rods in our lab. The table below shows the results.
|
Parameter |
Value / Standard |
|
Tensile Strength |
≥ 480 MPa |
|
Load Test (center) |
5 kg |
|
Deflection |
≤ 10 mm |
|
Result |
No permanent deformation |
|
Temperature Cycle Test |
-20°C to 60°C |
|
Result |
No size change |
|
Abrasion Test |
1,000 rubs against fabric |
|
Result |
No fuzzing |
The rods are stiff. They hold the divider flat. Your clothes will not get wrinkled. The silicone caps are soft. They will not scratch the suitcase interior. The rods are very light. They do not add weight to the suitcase. The rods work in all climates. Hot or cold, they do not change size. The Luggage Support Rods are very reliable.
No metal and easy to remove
The rods have no metal. They will not set off metal detectors. This is good for air travel. The rods are easy to remove. You just pull them out of the slots. You can take them out to wash the divider. Then you put them back. The silicone caps hold them in place. The rods will not fall out during travel. The smooth surface does not snag on clothes.
Why customers buy from us
We support custom orders. Do you need a different length? Yes, from 200 to 800 mm. Do you need a different diameter? Yes, from 3 mm to 6 mm. Do you need different end caps? Yes, rubber or silicone. FAQ: Can I use these in a soft-sided suitcase? Yes, if it has fabric sleeves. FAQ: Do they break easily? No, they are very strong. FAQ: Are they safe for checked luggage? Yes, they are very durable. The Luggage Support Rods improve suitcase quality. Shaoxing Longfan has ISO 9001. We make 3000 tons of fiberglass products each year.
