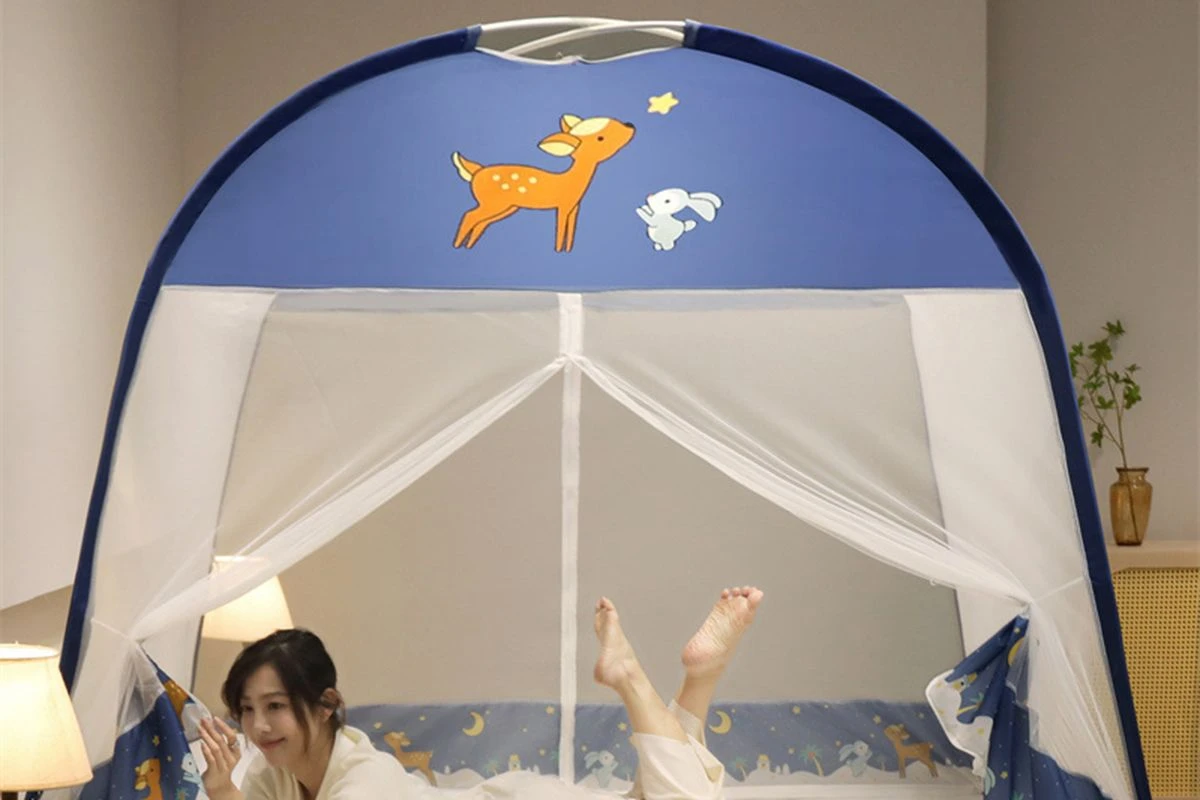

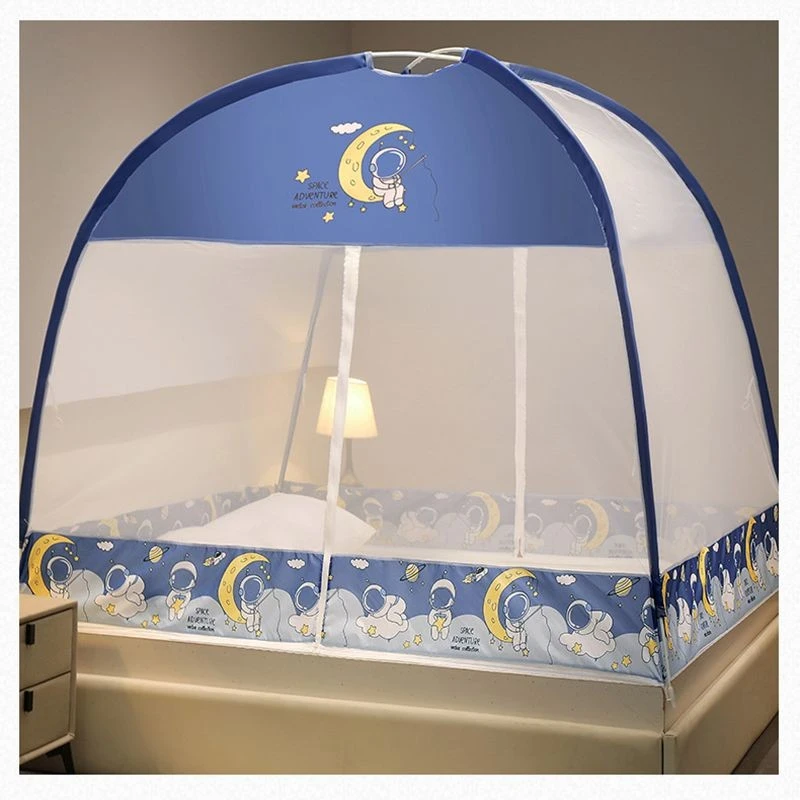

Dome shape with curved poles
Shaoxing Longfan started in 2021. We make fiberglass products. Mongolian style mosquito nets need curved poles. The poles form a dome. Metal curved poles bend easily. They are also heavy. We use a heat-setting process to make curved fiberglass poles. Four to six poles meet at a center hub on top. A mosquito net factory in Zhejiang used our bed frame for curtains. Their dome net became a hot seller on Douyin. They sold 100,000 units in one month. They said the dome looks good and feels stable. We have 14 patents. Our annual production is 3000 tons.
Curved poles and strong hub
We supply 4 to 6 curved fiberglass poles. The heat-setting process creates a fixed curve. The curve radius is from 0.8 to 1.5 meters. You can choose the radius. The pole body has a 7 mm diameter. The wall thickness is 1.2 mm. The pole is hollow. This makes it light. The rebound rate is 97% or higher. This means the pole returns to its shape after bending. All curved poles meet at a top center hub. The hub is made of PA66 with 30% fiberglass. The hub is very strong. It has holes for each pole. You push the pole end into the hole. It locks in place.
Test data from our lab
We tested the frame in our lab. The table below shows the results.
|
Parameter |
Value / Standard |
|
Flexural Strength |
≥ 530 MPa |
|
Hub Insertion Depth |
≥ 30 mm |
|
Hub Pull-out Force |
≥ 120 N |
|
Vertical Compression Test |
10 kg on top |
|
Max Displacement |
≤ 50 mm |
|
Result |
No break |
|
Assembled Height |
1.5 to 2.0 meters |
|
Storage Diameter |
≤ 40 cm |
The curved poles create a tall ceiling inside the net. There are no dead corners. You have full space under the net. You can sit up straight. You can put a large mattress inside. The center hub fixes all poles at the top. The structure is very stable. The poles will not fall down. The poles are elastic. You can squeeze them together for storage. They return to their curved shape when you let go. To store the frame, you twist the poles into a round shape. The round shape fits into a carry bag. The bag diameter is 40 cm or less. The bed frame for curtains is easy to store.
No metal parts and long life
The frame has no metal parts. The poles are fiberglass. The hub is plastic. There is no rust. You can use the frame for many years. The poles do not bend out of shape. The hub does not crack. We tested the hub with 10 kg of weight on top. The displacement was only 50 mm. The hub did not break. The poles did not break. The frame is strong enough for daily use.
Why customers buy from us
We support custom orders. Do you need a different curve? Yes, we can change the radius. Do you need a different color? Yes, we have white, black, and wood color. Do you need a different hub design? Yes, we can make custom hubs. FAQ: Can I use this frame outdoors? Yes, but keep it away from heavy rain. FAQ: Is assembly hard? No, the poles snap into the hub easily. FAQ: How long does assembly take? About 5 minutes. The bed frame for curtains adds beauty to any room. Shaoxing Longfan has ISO 9001. We make 3000 tons of fiberglass products each year.
